Adaz – Automatically Deploy Customizable Active Directory Labs In Azure

Adaz - Automatically Deploy Customizable Active Directory Labs In Azure



This project allows you to easily spin up Active Directory labs in Azure with domain-joined workstations, Windows Event Forwarding, Kibana, and Sysmon using Terraform/Ansible.

It exposes a high-level configuration file for your domain to allow you to customize users, groups and workstations.

dns_name: hunter.lab
dc_name: DC-1
initial_domain_admin:
username: hunter
password: MyAdDomain!
organizational_units: {}

users:
- username: christophe
- username: dany
groups:
- dn: CN=Hunters,CN=Users
members: [christophe]
default_local_admin:
username: localadmin
password: Localadmin!
workstations:
- name: XTOF-WKS
local_admins: [christophe]
- name: DANY-WKS
local_admins: [dany]
enable_windows_firewall: yes

Features

  • Windows Event Forwarding pre-configured
  • Audit policies pre-configured
  • Sysmon installed
  • Logs centralized in an Elasticsearch instance which can easily be queried from the Kibana UI
  • Domain easily configurable via YAML configuration file

Here’s an incomplete and biaised comparison with DetectionLab:

Adaz DetectionLab
Public cloud support Azure AWS, Azure (beta)
Expected time to spin up a lab 15-20 minutes 25 minutes
Log management & querying Elasticsearch+Kibana Splunk Enterprise
WEF
✔️
✔️
Audit policies
✔️
✔️
Sysmon
✔️
✔️
YAML domain configuration file
✔️
Multiple Windows 10 workstations support
✔️
VirtualBox/VMWare support
✔️
osquery / fleet

(vote!)

✔️
Powershell transcript logging

(vote!)

✔️
IDS logs

(vote!)

✔️

Use-cases

  • Detection engineering: Having access to clean lab with a standard is a great way to understand what traces common attacks and lateral movement techniques leave behind.
  • Learning Active Directory: I often have the need to test GPOs or various AD features (AppLocker, LAPS…). Having a disposable lab is a must for this.

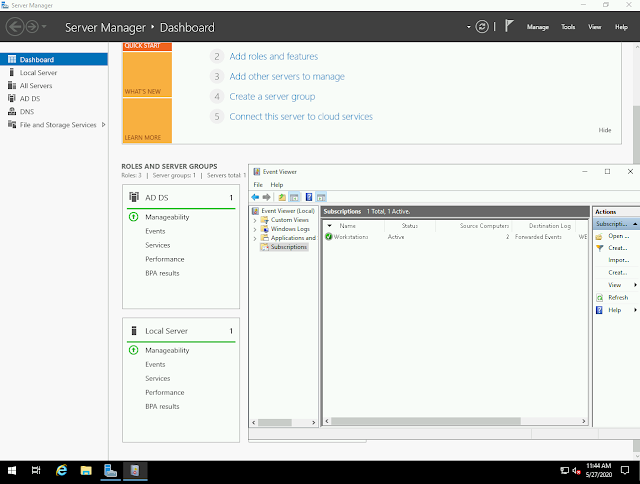

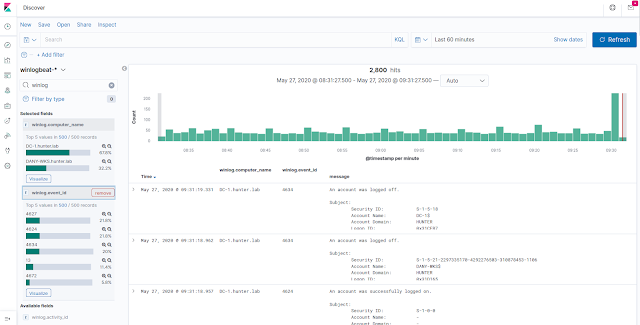

Screenshots







Getting started

Prerequisites

  • An Azure subscription. You can create one for free and you get $200 of credits for the first 30 days. Note that this type of subscription has a limit of 4 vCPUs per region, which still allows you to run 1 domain controller and 2 workstations (with the default lab configuration).
  • A SSH key in ~/.ssh/id_rsa.pub
  • Terraform >= 0.12
  • Azure CLI
  • You must be logged in to your Azure account by running az login. Yu can use az account list to confirm you have access to your Azure subscription

Installation

  • Clone this repository
git clone https://github.com/christophetd/Adaz.git
  • Create a virtual env and install Ansible dependencies
# Note: the virtual env needs to be in ansible/venv
python3 -m venv ansible/venv
source ansible/venv/bin/activate
pip install -r ansible/requirements.txt
deactivate
  • Initialize Terraform
cd terraform
terraform init

Usage

Optionally edit domain.yml according to your needs (reference here), then run:

terraform apply

Resource creation and provisioning takes 15-20 minutes. Once finished, you will have an output similar to:

dc_public_ip = 13.89.191.140
kibana_url = http://52.176.3.250:5601
what_next =
####################
###  WHAT NEXT?  ###
####################
Check out your logs in Kibana:
http://52.176.3.250:5601
RDP to your domain controller:
xfreerdp /v:13.89.191.140 /u:hunter.labhunter '/p:Hunt3r123.' +clipboard /cert-ignore
RDP to a workstation:
xfreerdp /v:52.176.5.229 /u:localadmin '/p:Localadmin!' +clipboard /cert-ignore
workstations_public_ips = {
"DANY-WKS" = "52.165.182.15"
"XTOF-WKS" = "52.176.5.229"
}

Don’t worry if during the provisioning you see a few messages looking like FAILED - RETRYING: List Kibana index templates (xx retries left)

By default, resources are deployed in the West Europe region under a resource group ad-hunting-lab. You can control the region with a Terraform variable:

terraform apply -var 'region=East US 2'

Documentation

Roadmap

I will heavily rely on the number of thumbs up votes you will leave on feature-proposal issues for the next features!

Suggestions and bugs

Feel free to open an issue or to tweet @christophetd.
